Description

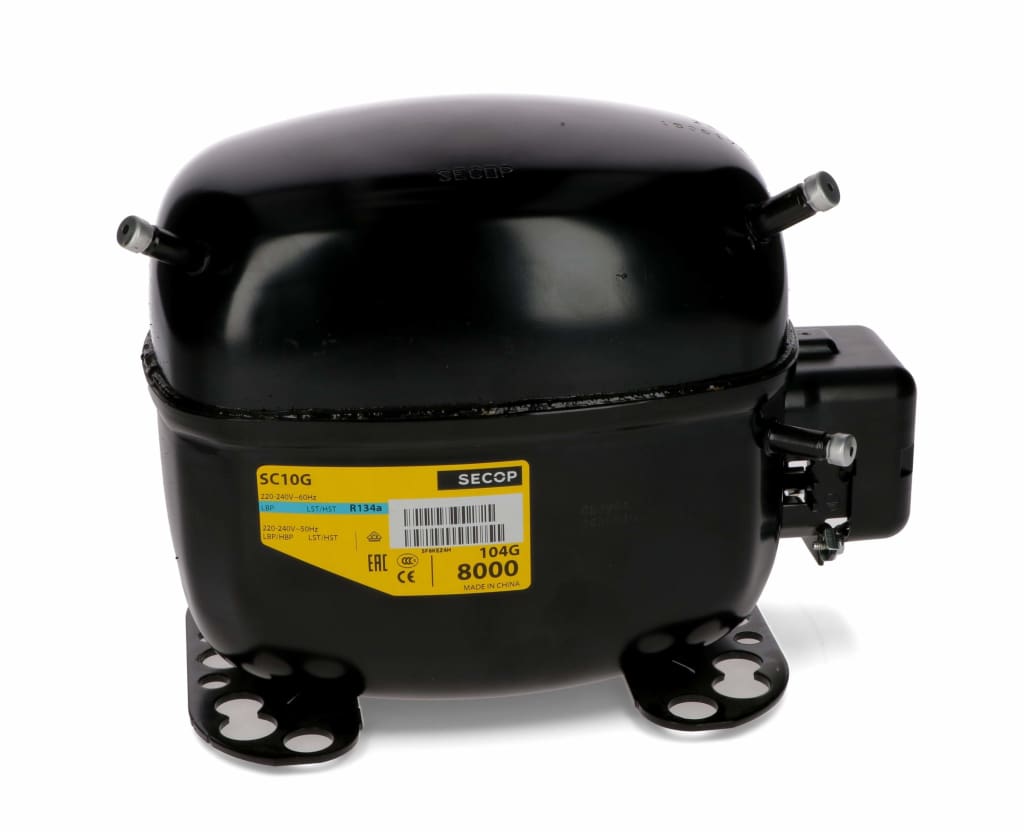

SC10G Universal Compressor R134a 220-240V 50/60Hz
Accessories for SC10G - PTC Starting Device, Starting Relay, Cover, Start Capacitor, Cord Relief & Protection Screen for PTC
Code number 104G8000
Approvals EN 60335-2-34 EN 12900 Household (CECOMAF) CCC CE & EAC
Application LBP/HBP LBP/MBP
Frequency Hz 50 60
Evaporating temperature °C -35 to 15 -35 to -5
Voltage range V 187 - 254 198 - 254
Max. condensing temperature continuous (short) °C 60 (70) 60 (70)
Max. winding temperature continuous (short) °C 125 (135) 125 (135)
Displacement cm3 10.29CC
Oil quantity (type) cm3 550 (polyolester)
Maximum refrigerant charge g 1300
Free gas volume in compressor cm3 1510
Weight without electrical equipment kg 12.1
For more details please visit: https://www.secop.com/fileadmin/user_upload/SEPS/datasheets/sc10g_104g8000_r134a_220v_50hz_60hz_05-2016_desd402g302.pdf
MUST ONLY BE INSTALLED BY PROFESSIONAL.
